DESCRIPTION

Basic Info.

Model NO.	MPC-DS
Application	Cosmetics, Drinks, Cleaning, Detergent, Skin Care Products, Hair Care Products, Oil, Tea, Snack, Seasoning, Dairy Products
Type	Sticker Labeling Machine
Driven Type	Electric
Classification	Upper and Lower Sticker Labeling Machine
Packaging Material	Composite Materials
Packaging	Cartons
Capacity	80-200bpm
Transport Package	Wooden Case
Specification	2800* 1350 *1500mm
Trademark	Grepack
Origin	Shanghai, China
HS Code	8422309090
Production Capacity	200 Set Per Month

Product Description

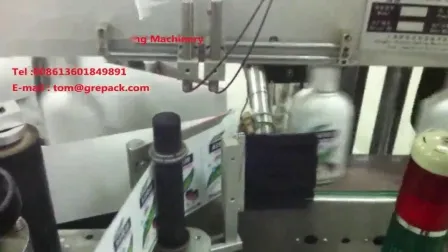

The labeling machine is used for single or double labels applied on bottles from different shape of round,square,oval etc.It iscapable of various industries as food, medicine, cosmetics and cultural supplies and so on.

Bottle Shape Application
Machine FeaturesI Strong application on different object shape of round, square, oval etcII Label head dirven by Servo motor for High accurate & High Speed perfomanceIII PLC control system, Easy adjust from touch screenIV Synchro top-arm design guarantee bottle position fixed during work.V Intelligent digital label tracking system supported from Keyence, Autonics etc
Technical Parameter:

Model	MPC-DS
Dirive	servo motor driven
Direction	Left to Right
Bottle Diameter	30-130mm
Bottle Height	20-200mm
Labeling Speed	80-200pcs/min
Label Size	Width:15-140mm Length:15-300mmMachine will be customized if exceeding the size
Accuracy	±1mm
Label Roll Core Diameter	Max:300mm
Machine Size	2800*1300*1500mm
Weight	280kg
Powder	AC 220V/380V 50/60HZ 2500W
